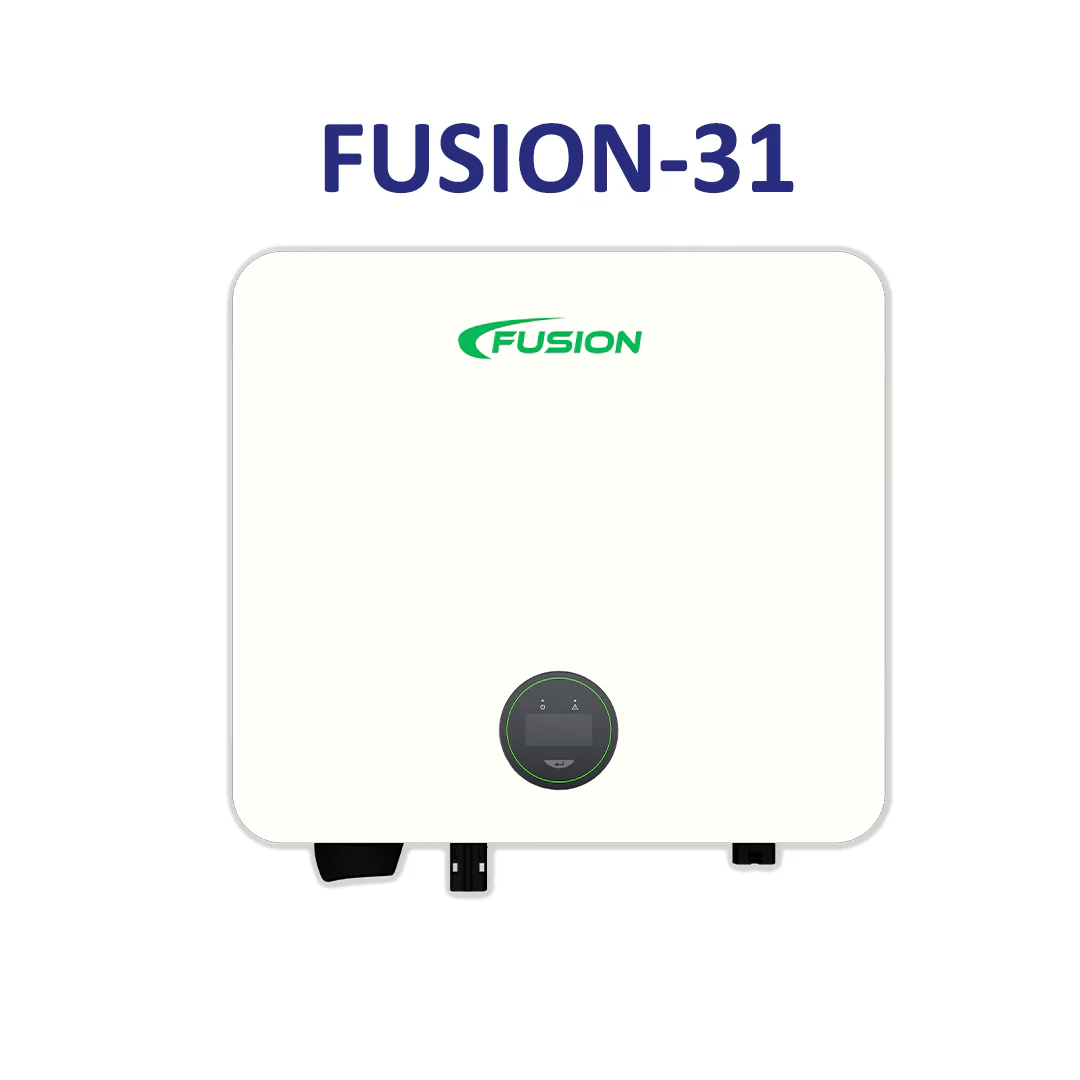

Introducing the Fusion 3 kW, single-phase on-grid solar inverter designed for India's high temperatures. With features such as DC reverse-polarity and insulation monitoring, AC short circuit and output over-voltage protection, and a Type II surge protection option, you are guaranteed a safe and efficient solar power system. Plus, the better heat sink design ensures optimal performance, even in extreme temperatures.

Designed for quick grid disconnection during utility grid outages, the Grid Tie Inverter safeguards line workers tasked with restoring power from potential harm.

Key Features

• Wall Mounted
• LCD Display with one-button operation.
• Zero Export (optional),
• Safety Protection - Anti-Islanding, Ground Fault Monitoring
• Mobile and website-based remote Monitoring- free for 25 years.

Video

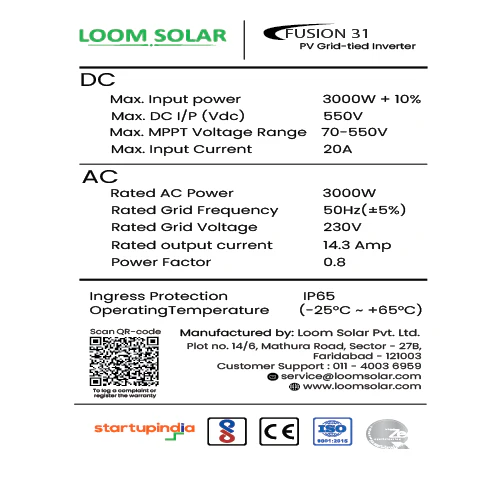

Key Technical

Model Name	Fusion31FE
System Rating	3 kW, Single-Phase
Maximum Solar Panel Connection (Watts)	3300 Watts
Efficiency	97%
Feed-in Phase	Single Phase
Topology	Non-isolated
Number of MPPT Controllers	1
Noise	< 30dBA
Weight (kg)	5.4 Kg

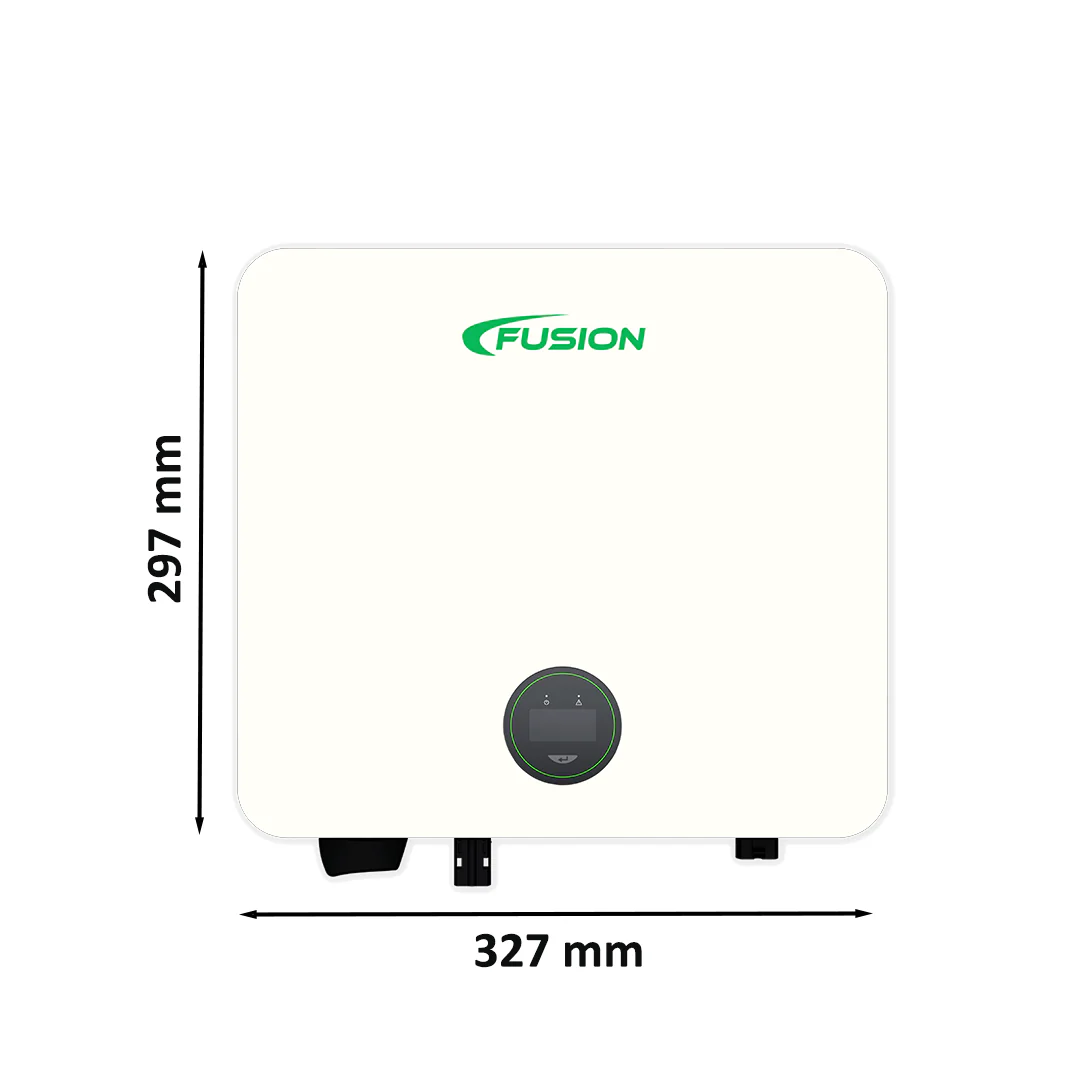

Dimensions [W*H*D] mm	327*297*114

Product Manual: Download the product data sheet and User Manual to know the electrical parameters.
