Loom Solar Grid Tied Inverters are powerful inverters that convert direct current (DC) electricity into alternating current (AC). It is also called an On-grid system which works without a battery. The Main purpose of a Grid-tied inverter is to supply power from the main supply to homes/offices and feed the Generation of solar Power to the main supply.

Grid-tie Inverters are designed to quickly disconnect from the grid if the utility grid goes down. It ensures that in the event of a blackout, the grid-tie inverter will shut down to prevent the energy it transfers from harming any line workers who are sent to fix the power grid.

Key Features

• On Gird/ Gird Tied inverter for Saving electricity bill by selling access generation of Solar Power to Power distribution Companies through Net metering system.

Video

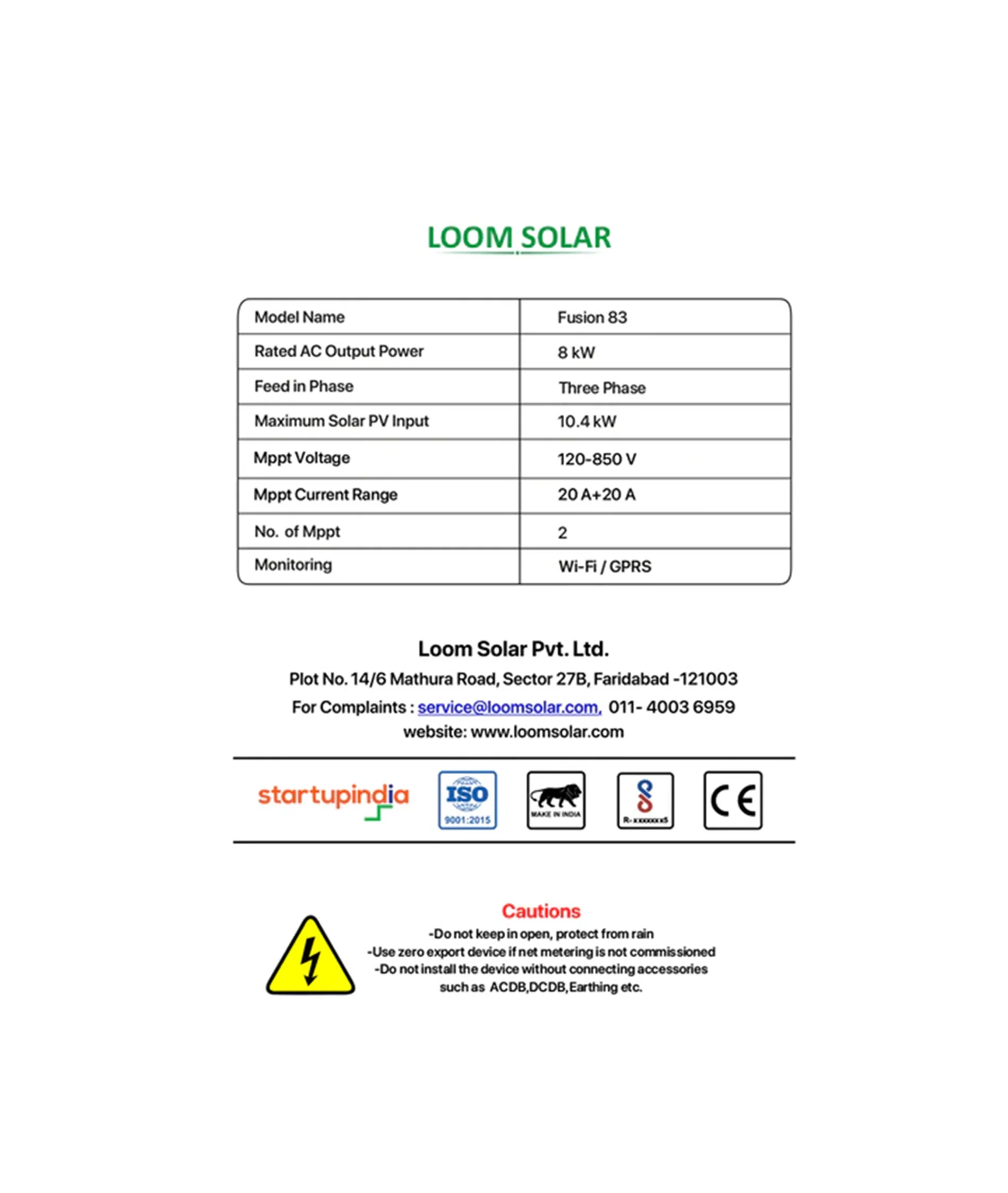

Key Technical

Model Name	Fusion 83
System Rating	8 KW, Three Phase
Maximum Solar Panel Connection (Watts)	12000 Watts
Efficiency	96.80%
Feed-in Phase	Three-phase
Topology	Transformerless
Number of MPPT Controller	1
Noise	< 30dBA
Weight (kg)	15 Kg
Dimensions [L * H * W] mm	330 * 472 * 202

Product Manual: Download product data sheet to know electrical parameters
