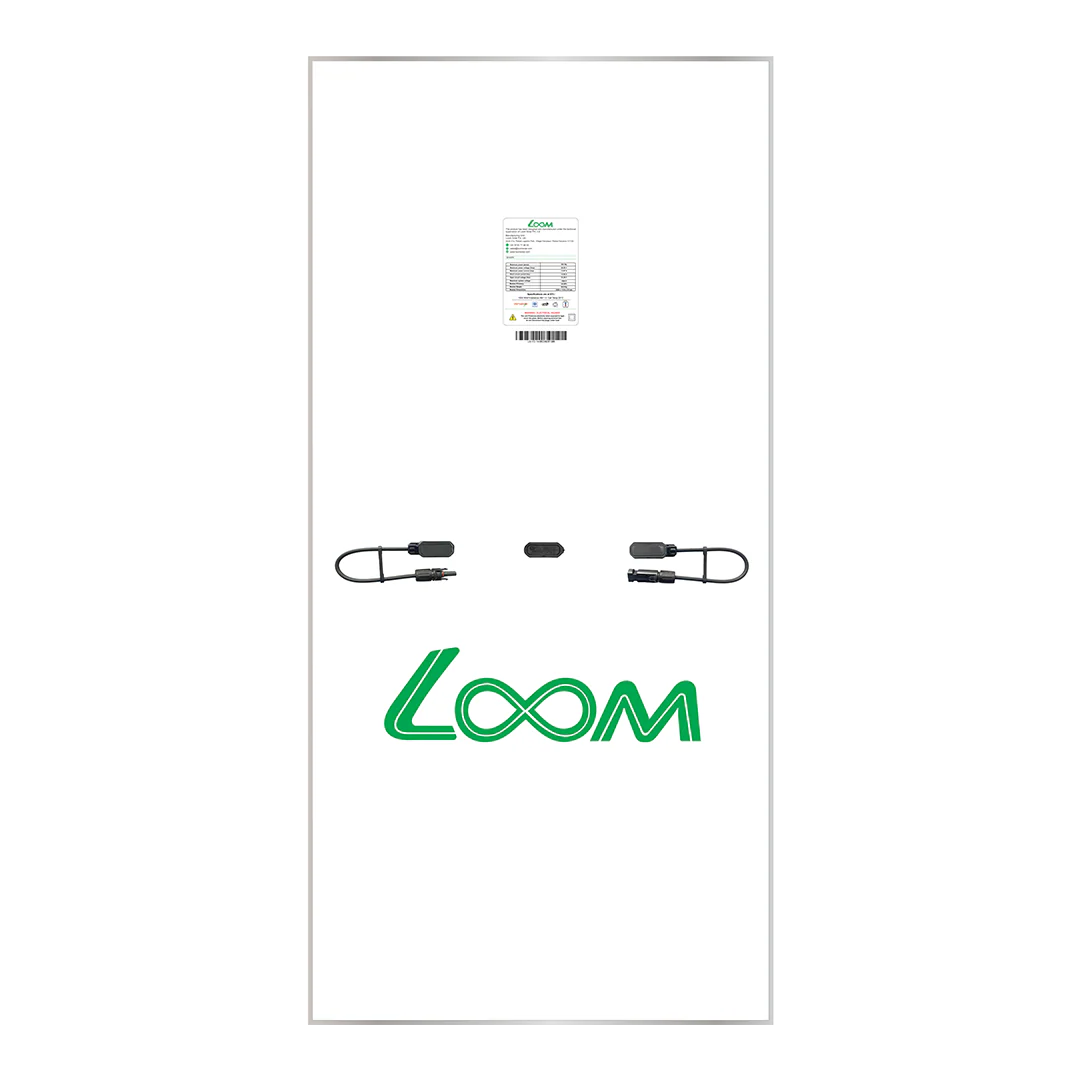

Introducing SHARK–LBC 650 Wp is a premium rooftop solar panel built with LBC – Loom Solar Back Contact technology, where all electrical connections are placed on the backside of the cell. This design removes front-side metal lines, which allows more sunlight to be absorbed. Its back-contact design gives a clean, premium look and improves power generation by reducing front-side shading. With 650 Wp output and 24.20% efficiency, it delivers more energy in less space this is perfect for modern rooftops and with this rooftops looks premium.

This panel is engineered for strong performance with anti-PID/anti-LeTID protection, low power degradation, and a low temperature coefficient (-0.24%/°C) that keeps energy production high even in hot climates. It also reduces overall LCOE and system cost.

Built for reliability, it is tested for 35 mm ice-ball impact, minimizes micro-crack effects, and handles 5400 Pa snow loads and 2400 Pa wind loads. It comes with a 15-year product warranty and 30-year performance warranty (1% first-year degradation, 0.3% yearly after).

Certified under IEC 61215, IEC 61730, CE, BIS, and ISO, the SHARK–LBC is a stylish, durable, and high-efficiency solar panel ideal for premium residential and commercial rooftops.

Why 650 Watt LOOM BACK CONTACT

* LBC – Loom Solar Back Contact Technology: No front busbars, giving a premium, clean look and higher light absorption for more power.
* High Power Output : Generates up to 650 Wp with 24.20% efficiency for maximum rooftop performance.
* +0–5W Positive Power Tolerance : Ensures stable and reliable energy generation.
* Low Heat Loss: -0.24%/°C temperature coefficient gives better output in hot weather.
* Better Protection: Anti-PID and anti-LeTID technology reduce degradation and increase long-term energy yield.
* Strong Build Quality: Tested for 35 mm ice-ball impact, handles 5400 Pa snow and 2400 Pa wind load.
* Micro-crack Resistance: Designed to minimize micro-crack impact for long life.
* Long Time Warranty: 15-year product warranty + 30-year performance warranty (1% first year, 0.3% yearly after).
* Certified: Certified with IEC 61215, IEC 61730, CE, BIS, ISO standards for quality and safety.

Electrical specification

Wattage (Wp)	650
Voltage at Max Power, Vmp (V)	46.92
Current at Max Power, Imp (A)	13.87
Open Circuit Voltage, Voc (V)	53.28
Short Circuit Current, Isc (A)	14.92
Number of cells	144

Mechanical specification

Output Power	650 Watts
Operating Voltage	24 Volt
Panel Technology	Back Contact
Manufacturer Warranty	15 years of Manufacturing defects
Performance Warranty	30 Years
Additional Features	A+ Grade, Back contact  cells
	Cell Conversion efficiency > 24.20%
	Compliance with IEC standards

Shipping

Weight	32.3 kg ~+5
Dimensions (L x W x H)	2383x 1134x 35 mm~ +5mm

Warranty

Performance Warranty: 25 Years.
Manufacturing Warranty: 5 Years on manufacturing defects.

Download datasheet from here.
